Deterministic Annealing EM Algorithm

Abstract:

The EM algorithm is an iterative statistical technique for computing maximum likelihood parameter estimates from incomplete data. It has been employed to a wide variety of parameter estimation problems. However, this algorithm has the local maxima problem in practice (Figure 1(a)). Although the problem is familiar to many, little effort has been made so far.

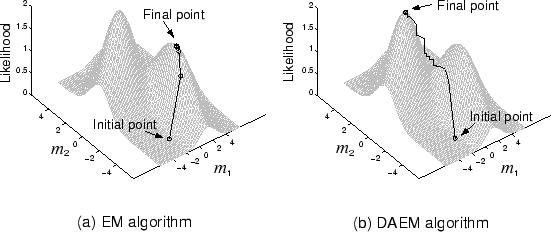

Figure 1: Estimation results

m₁,m₂denote unknown paramters. In DAEM algorithm, search results at each temerature are superimposed on the free energy at $\beta=1$.

Deterministic Annealing EM Algorithm

To overcome this problem, we have derived the deterministic annealing EM (DAEM) algorithm by using the principle of maximum entropy and the statistical mechanics analogy [1] [3]. In this approach, the maximization of the likelihood function is embedded in the minimization of the thermodynamic free energy depending on the temperature which controls the annealing process.

As shown in Figure 2, by gradually decreasing the temperature (increasing $\beta$) until $\beta=1$ (when $\beta=1$, F exactly agrees with the likelihood function) and minimizing the free energy at each temperature, the global optimal solution can be obtained. Note that unlike the conventional simulated annealing (SA), the free energy is deterministically minimized at each temperature. Therefore the DA is much faster than the SA.

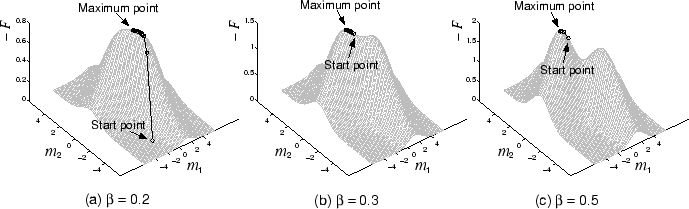

Figure 2: Annealing control by the temperature

The optimization at each temperature starts from the optimal point obtained at the previous temperature. As the value of $\beta$ approaches one, the solution is gradually led to the true solution.

We have applied the DAEM algorithm to the training of a probabilitic neural network using mixture models and have shown its superiority [2] [3].

Contact: Naonori Ueda, Email: ueda@cslab.kecl.ntt.co.jp

Bibliography

1

Ueda, N. and Nakano, R.: Deterministic annealing variant of the EM algorithm, G. Tesauro et al. eds., Advances in NIPS 7, MIT Press, Cambridge MA, pp.545-552 (1995).

2

Ueda, N. and Nakano, R.: A new maximum likelihood training and application to probabilistic neural networks, Proc. of Int. Conf. on Artificial Neural Networks (ICANN)'95, pp. 497-501 (1995).

3

Ueda, N. and Nakano, R.: Deterministic annealing EM algorithm, Neural Networks , vol. 11, no. 2, pp. 271-282 (1998).
